Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

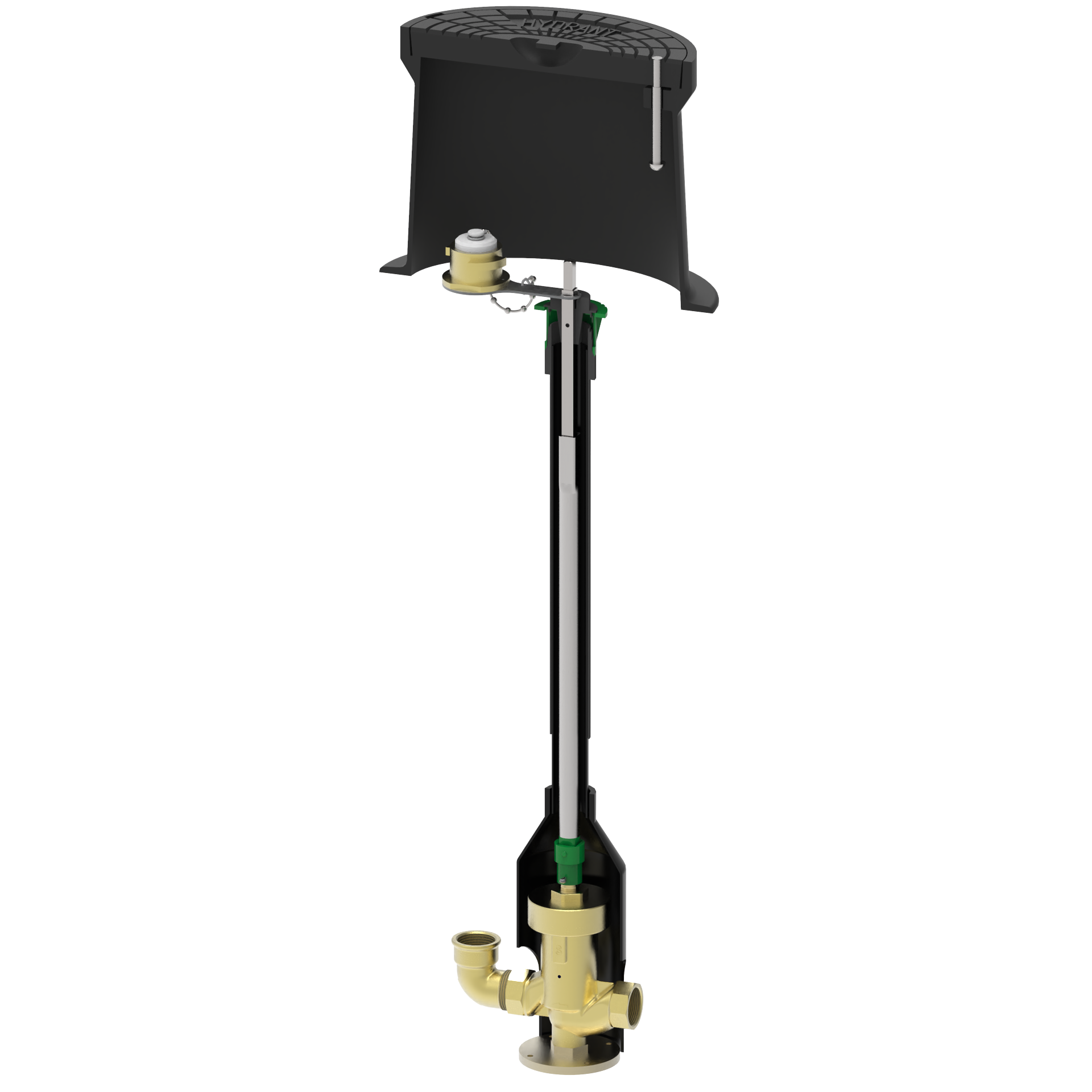

Single hydrant - set DN 40 (garden main valve)
Art.-No.: 80 2062 60
+1
Variant
For use in frost-free areas below floor level, female thread on both sides, 90° outlet bend, automatic drainage when shut off, flange plate for fixing, brass valve, telescopic extension spindle with protection tube, with square SW 11.5 mm actuator, with guide disc and tap box. Riser pipe to be installed on site
Attributes
- Telescopic built-in set
- Outlet bend 90°
- Automatic draining
- Use in frost-free areas
- Brass housing
Variants
Ausführung mit Teleskop-Einbaugarnitur 1,00 m - 1,26 m
Art.-No.:
80 2062 60
Bookmark
Version with telescopic extension set 1.27 m - 1.86 m
(Dimensional drawing see downloads - data sheet)
Art.-No.:
80 2066 60
(Dimensional drawing see downloads - data sheet)
Bookmark
Dimensional Drawings
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
