Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

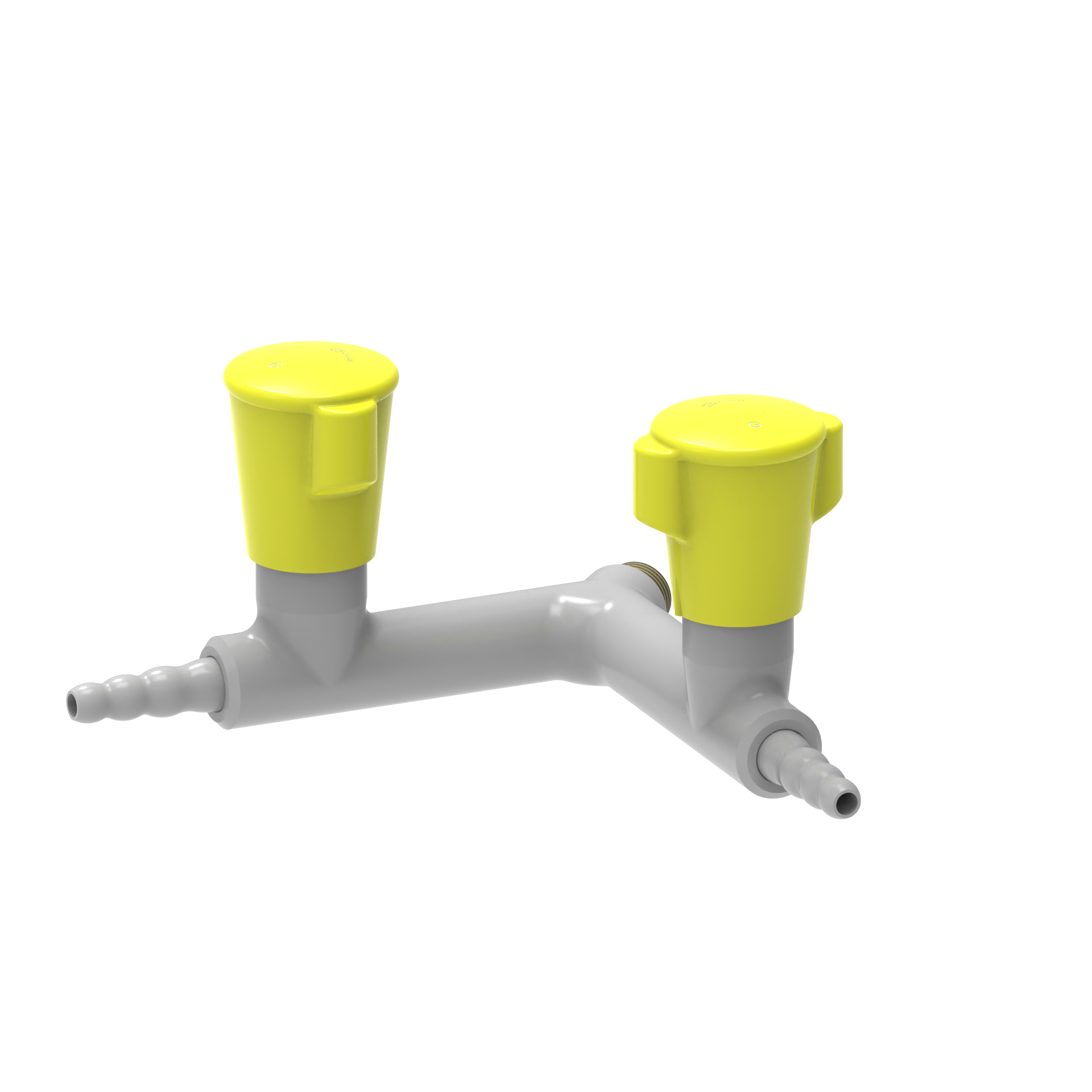

NOVALAB laboratory V-valves (2) for burning gases with fixed nozzles, connection thread G3/8"
Art.-No.: 78 0811 15 35
+1
Variant
Attributes
- Headwork with ceramic discs 90°, maintenance free
- All-metal valve body, EPS-coated, grey RAL 7035
- Two-part ergonomic operating handles according to DIN 13792 with anti-twist protection and a visually recognisable operating state.
- Nominal pressure PN 0,2 bar
- Connection/fastening thread G3/8" - 11 mm long
- Hose nozzle diameter 10/13 mm
Variants
for burning gas (G)
Art.-No.:
78 0811 15 35
Bookmark
for propane (C3H6)
Art.-No.:
78 0811 15 39
Bookmark
Dimensional Drawings
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
