Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

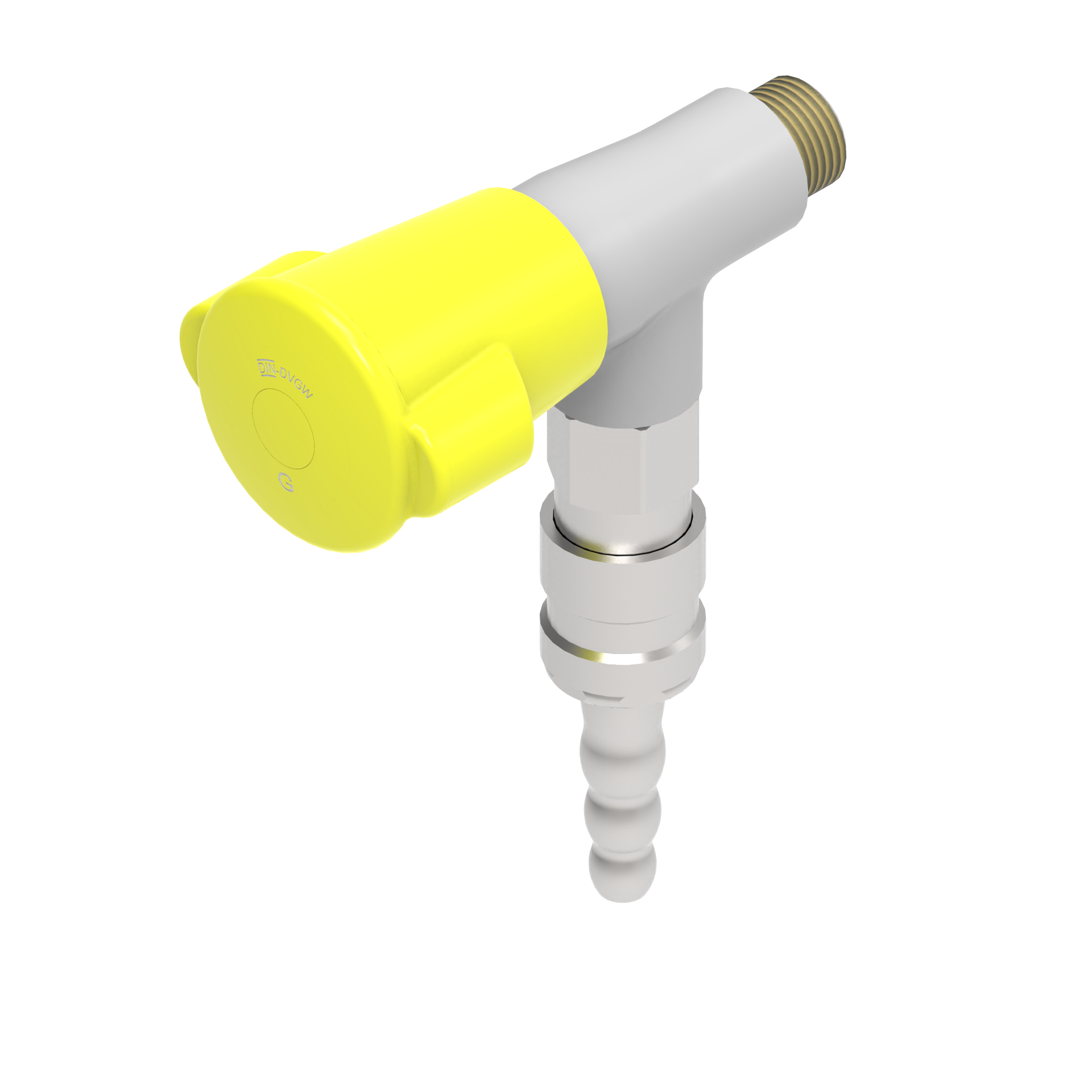

NOVALAB laboratory ceramic disc angle valve for burning gases locking coupling and plug-in nozzlep, connection thread G 3/8"
Art.-No.: 78 0878 15 35
+3
Variants
Attributes
- Headwork with ceramic discs 90°, maintenance free
- Flow rate ca. 1,50 m³/h at 20 mbar flow pressure
- All-metal valve body, EPS-coated, grey RAL 7035
- Two-part ergonomic operating handle according to DIN 13792 with anti-twist protection and visually recognisable operating state
- Nominal pressure PN 0,2 bar
- Connection/fastening thread G3/8" - 11 mm long
- Hose nozzle diameter 10/13 mm
Variants
for natural gas (G), Projection A = 25 mm
Art.-No.:
78 0878 15 35
Bookmark
for propane (C3H8), Projection A = 25 mm
Art.-No.:
78 0878 15 39
Bookmark
for natural gas (G), Projection A = 50 mm
Art.-No.:
78 0878 95 35
Bookmark
for propane (C3H8), Projection A = 50 mm
Art.-No.:
78 0878 95 39
Bookmark
Dimensional Drawings
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
