Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

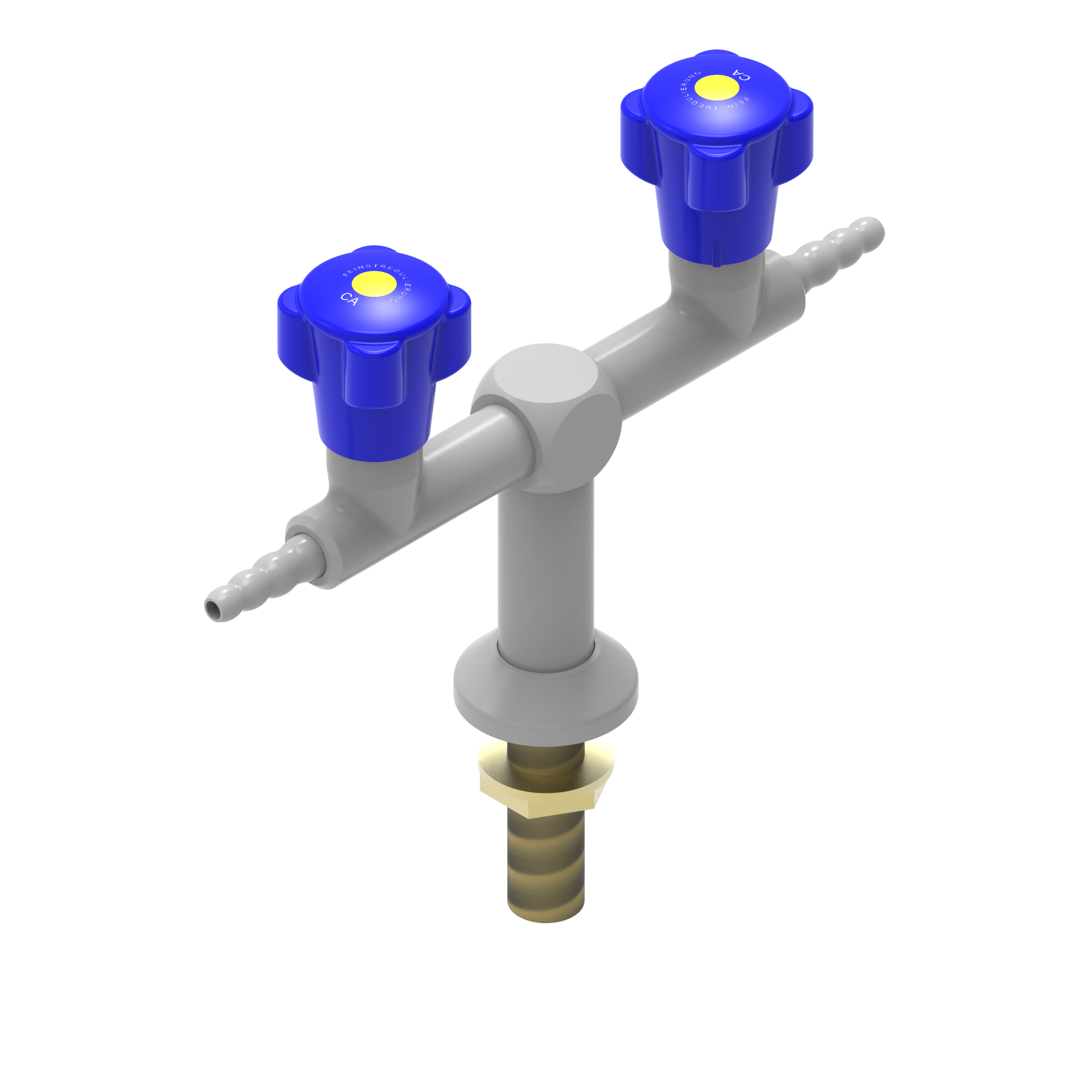

NOVALAB laboratory bench mounted straight (2) taps for compressed air (CA) with fixed nozzle, connection thread G1/2"
Art.-No.: 77 9753 25 53
Attributes
- Flow rate ca. 3,70 m³/h at 3 mbar flow pressure
- All-metal valve body, EPS-coated, grey RAL 7035
- Four-wing ergonomic operating handles according to DIN 13792
- Headwork with needle regulation
- Nominal pressure PN 10 bar
- Connection/fastening thread G3/8" - 11 mm long
- Hose nozzle diameter 10/13 mm
Variants
Bookmark
Dimensional Drawings
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
