Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing
Stainless steel design

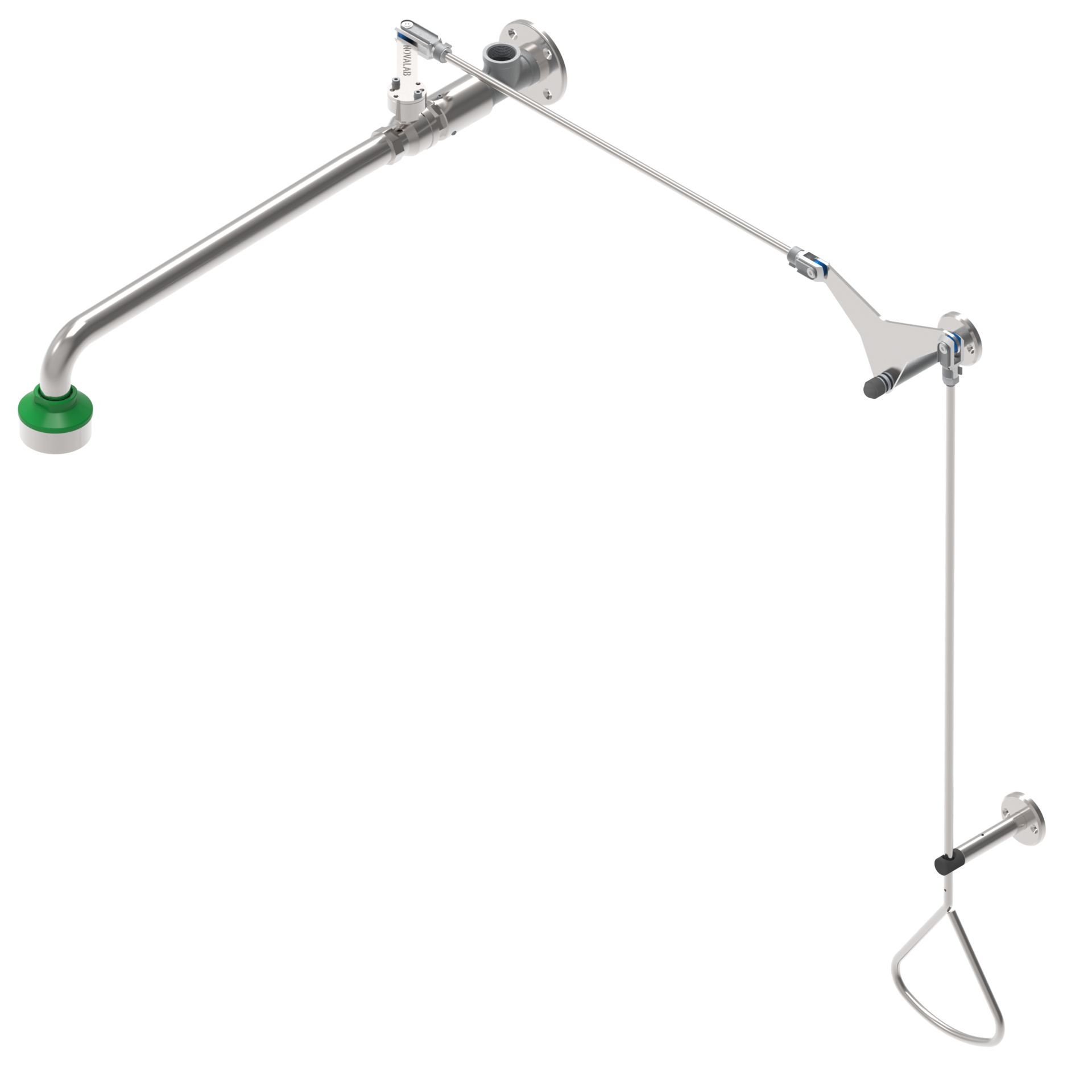

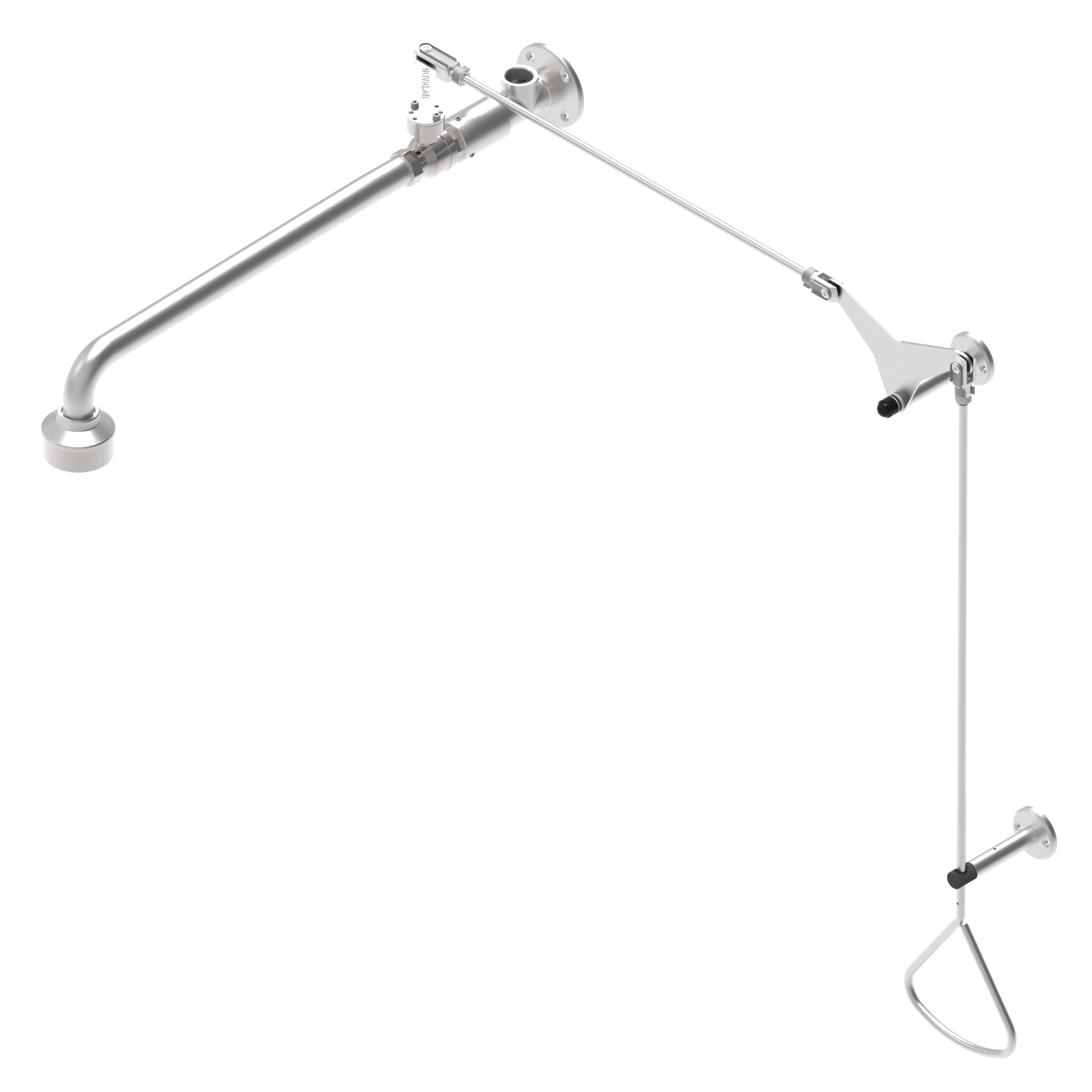

NOVALAB safety shower with ball valve and tie-rod actuation for surface mounting, water connection on all sides via middle of door, stainless steel design
Art.-No.: 60 1720 34
+1
Variant
Attributes
- Water connection on all sides via middle of door
- Standard door width 1m
- Actuation to the right or left of the door
- Actuating diverter with wall flange, ball valve, wall bracket and emergency shower head
- Emergency shower head with nozzle holes and swirl discs for optimum spray jet
- Self-draining shower head and wall bracket by gradient
- Fitting does not close automatically
- Safety shower head with 5 nozzle bores (approx. 30 l/min at 1 bar flow pressure) or 7 nozzle bores (approx. 60 l/min at 1.5 bar flow pressure)
- Wasseranschluss: Innengewinde G3/4
- Stainless steel
- Fulfils the requirements of DIN EN 15154-1 and the German BGI/GUV-I 850-0 ‘Safe working in laboratories’
- With safety sign ‘safety shower’ as a sticker in accordance with ISO 3864-1
- With mounting material and technical product information
Variants
safety-shower head with 5 jets
Volumetric flow rate approx. 30 l/min at 1,5 bar flow pressure
Art.-No.:
60 1720 34
Volumetric flow rate approx. 30 l/min at 1,5 bar flow pressure
Bookmark
safety-shower head with 7 jets
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Art.-No.:
60 1725 34
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Bookmark
Dimensional Drawings
Pressure Loss Curve
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
