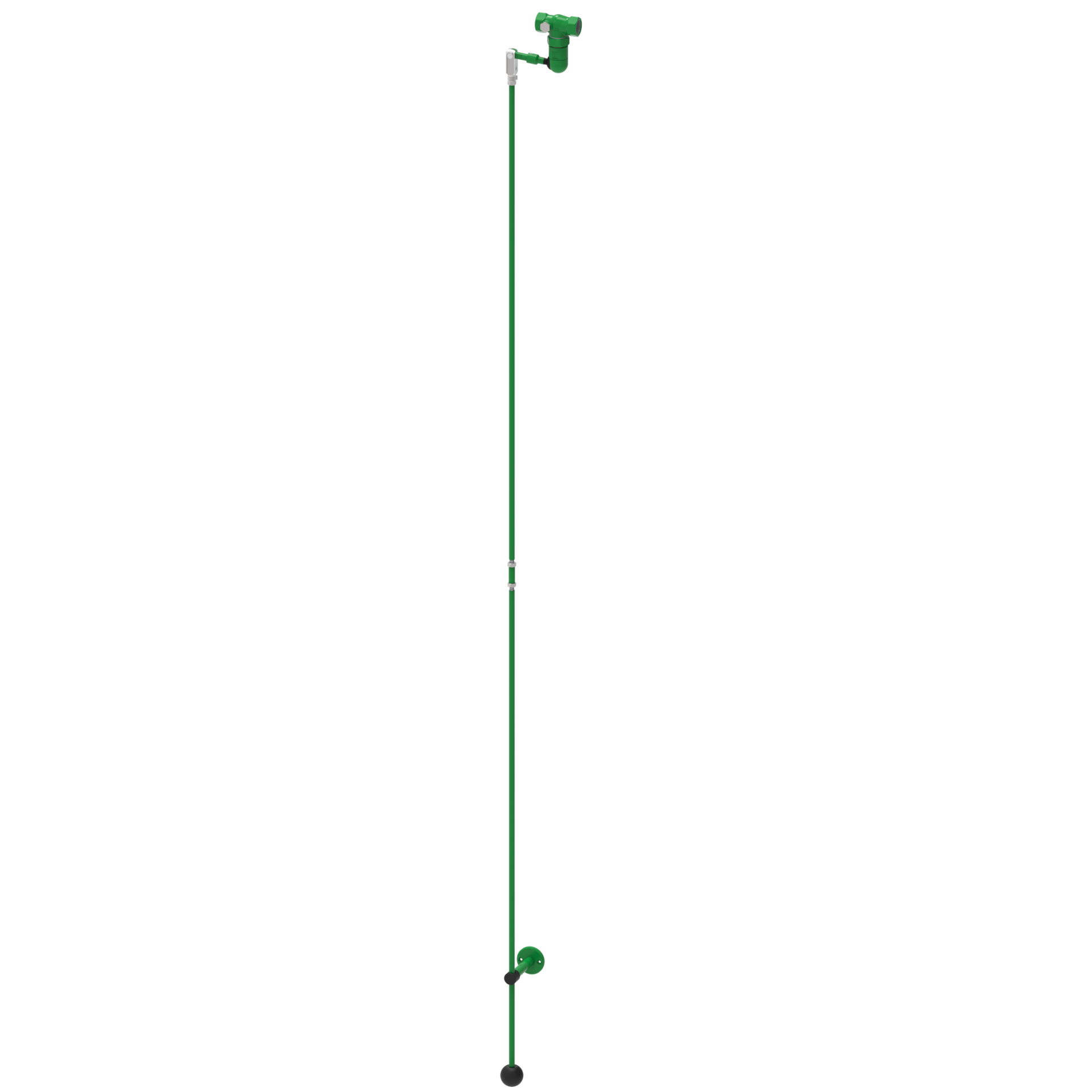

NOVALAB toggle valve with tie-rod actuation for ceiling mounting

Attributes

• ceiling installation
• Pull rod guided, with triangle handle and sealing option
• Axially sealing valve
• Headwork can be replaced without removing the valve body
• Position of valve to tie rod can be adapted to the installation conditions by rotating the upper part of the valve
• Emergency shower head with nozzle holes and swirl discs for optimum spray jet
• Replaceable nozzle base, nickel-plated
• Self-draining shower head and wall bracket by gradient
• Fitting does not close automatically
• Volume flow approx. 60 l/min at 1 bar flow pressure
• Wasseranschluss: Innengewinde G3/4
• Brass EPS-coated green RAL 6032
• Fulfils the requirements of DIN EN 15154-1 and the German BGI/GUV-I 850-0 ‘Safe working in laboratories’
• With safety sign ‘safety shower’ as a sticker in accordance with ISO 3864-1
• With mounting material and technical product information
