Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

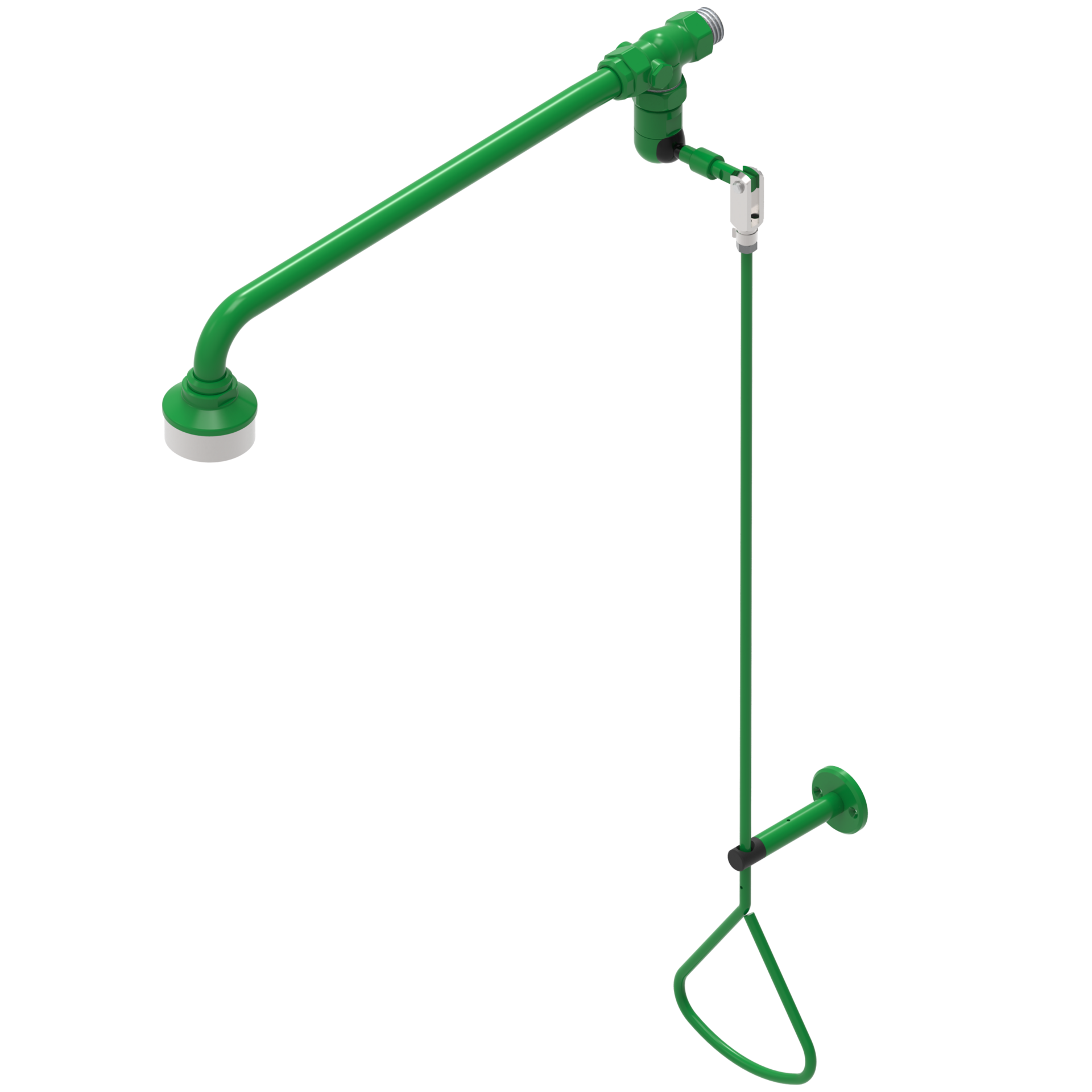

NOVALAB safety shower with toggle valve and tie-rod actuation, for installation in on-site branch stub
Art.-No.: 60 1850 35
+1
Variant
Attributes
- Pull rod guided, with triangle handle and sealing option
- Actuation optionally right/left
- Wall flange with toggle valve, wall bracket and safety shower head
- Axially sealing valve
- Headwork can be replaced without removing the valve body
- Emergency shower head with nozzle holes and swirl discs for optimum spray jet
- Replaceable nozzle base, nickel-plated
- Self-draining shower head and wall bracket by gradient
- Fitting does not close automatically
- Safety shower head with 5 nozzle bores (approx. 30 l/min at 1 bar flow pressure) or 7 nozzle bores (approx. 60 l/min at 1.5 bar flow pressure)
- Water connection: external thread G3/4B
- Brass EPS-coated green RAL 6032
- Fulfils the requirements of DIN EN 15154-1 and the German BGI/GUV-I 850-0 ‘Safe working in laboratories’
- With safety sign ‘safety shower’ as a sticker in accordance with ISO 3864-1
- With mounting material and technical product information
Variants
safety-shower head with 5 jets
Volumetric flow rate approx. 30 l/min at 1 bar flow pressure
Art.-No.:
60 1850 35
Volumetric flow rate approx. 30 l/min at 1 bar flow pressure
Bookmark
safety-shower head with 7 jets
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Art.-No.:
60 1855 35
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Bookmark
Dimensional Drawings
Pressure Loss Curve
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
