Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

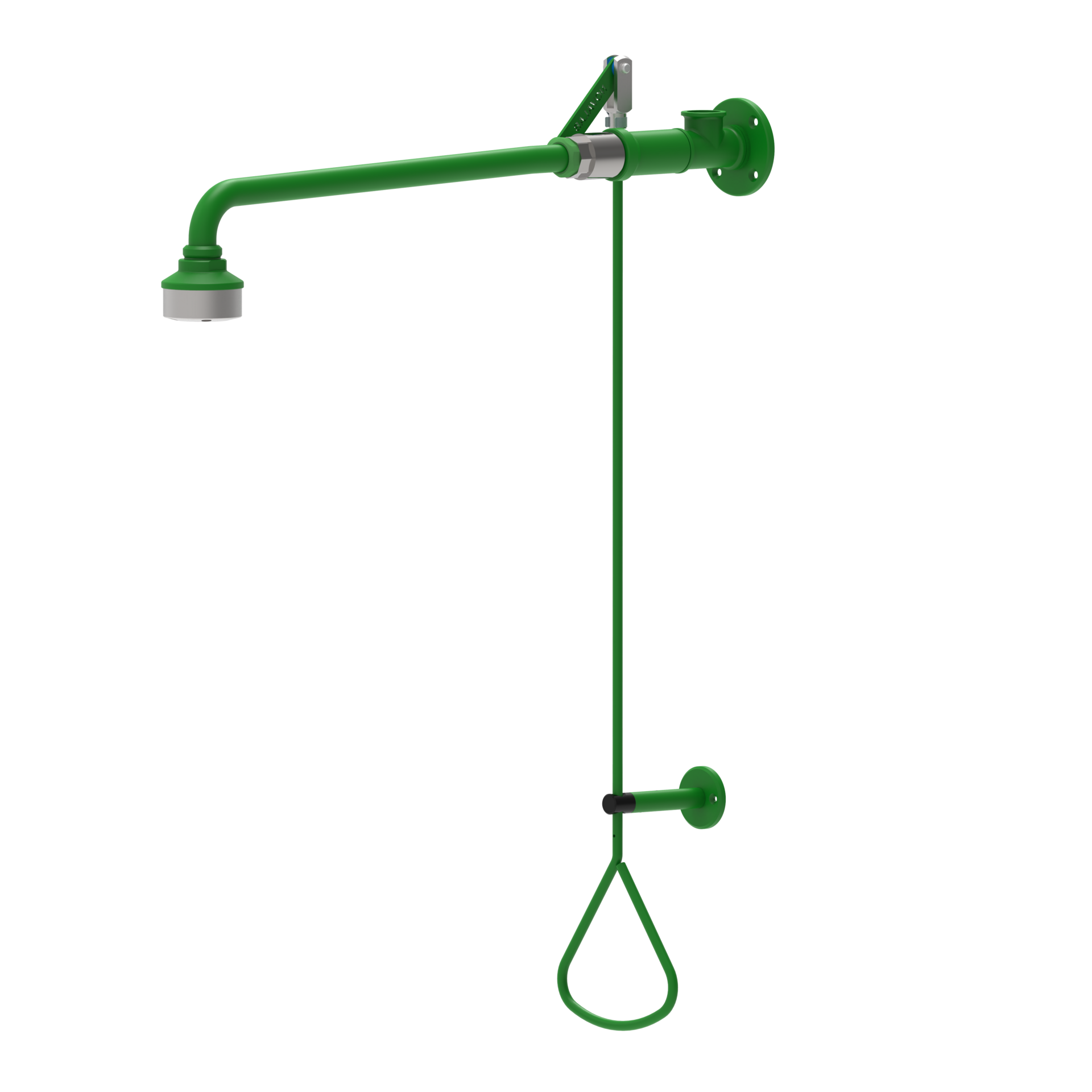

NOVALAB safety shower with ball valve and tie-rod actuation for surface mounting, water connection on all sides
Art.-No.: 70 1740 35
+3
Variants
Attributes
- Water connection on all sides
- Water supply from behind the wall
- Pull rod guided, with triangle handle and sealing option
- Actuation optionally right/left
- Wall flange with ball valve, wall bracket and safety shower head
- Emergency shower head with nozzle holes and swirl discs for optimum spray jet
- Replaceable nozzle base, nickel-plated
- Self-draining shower head and wall bracket by gradient
- Fitting does not close automatically
- Safety shower head with 5 nozzle bores (approx. 30 l/min at 1 bar flow pressure) or 7 nozzle bores (approx. 60 l/min at 1.5 bar flow pressure)
- Wasseranschluss: Innengewinde G3/4
- Brass EPS-coated green RAL 6032
- Fulfils the requirements of DIN EN 15154-1 and the German BGI/GUV-I 850-0 ‘Safe working in laboratories’
- With safety sign ‘safety shower’ as a sticker in accordance with ISO 3864-1
- With mounting material and technical product information
Variants
safety-shower head with 5 jets
Volumetric flow rate approx. 30 l/min at 1 bar flow pressure
Art.-No.:
70 1740 35
Volumetric flow rate approx. 30 l/min at 1 bar flow pressure
Bookmark
safety-shower head with 7 jets
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Art.-No.:
70 1745 35
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Bookmark
As basic safety shower, but water supply from behind the wall
Connection: external thread G3/4B
Emergency shower head with 5 jets
Volumetric flow rate approx. 30 l/min at 1 bar flow pressure
Art.-No.:
70 1770 35
Connection: external thread G3/4B
Emergency shower head with 5 jets
Volumetric flow rate approx. 30 l/min at 1 bar flow pressure
Bookmark
As basic safety shower, but water supply from behind the wall
Connection: external thread G3/4B
Emergency shower head with 7 jets
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Art.-No.:
70 1775 35
Connection: external thread G3/4B
Emergency shower head with 7 jets
Volumetric flow rate approx. 60 l/min at 1,5 bar flow pressure
Bookmark
Dimensional Drawings
Pressure Loss Curve
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
