Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

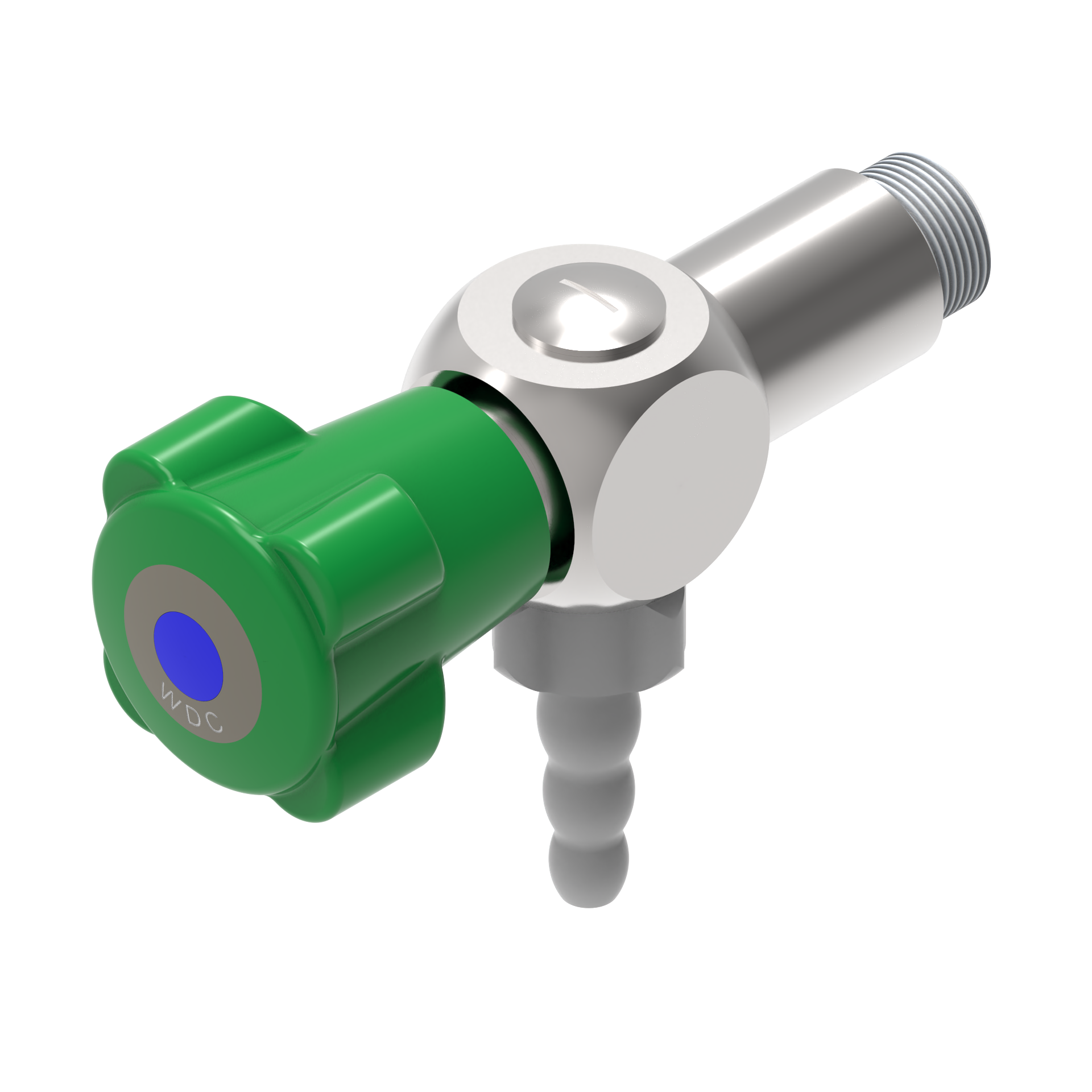

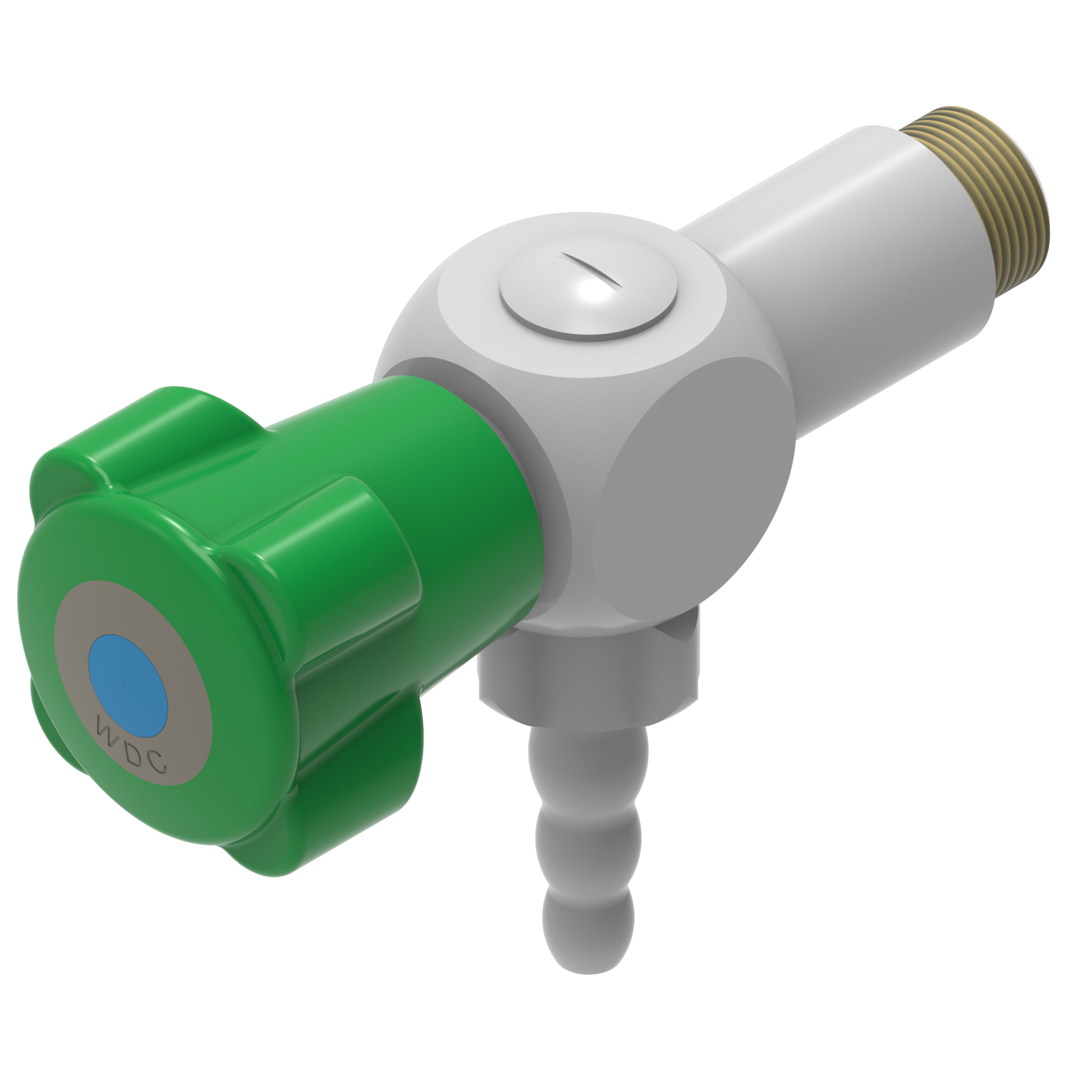

NOVALAB laboratory angle tap for fully demineralized water (WDC), connection thread G1/2"
Art.-No.: 70 0280 25 47
+2
Variants
Attributes
- Temperature range 0- 95 °C
- Valve body made of stainless steel, EPS coated in grey RAL 7035
- Four-wing ergonomic operating handle according to DIN 13792
- Nominal pressure PN 10 bar
- Connection/fastening thread G1/2" - 12 mm long
- Hose nozzle diameter 10/13 mm
Variants
Ausladung = 50 mm
Art.-No.:
70 0280 25 47
Bookmark
Projection = 75 mm
Art.-No.:
70 0281 25 47
Bookmark
Projection = 100 mm
Art.-No.:
70 0282 25 47
Bookmark
Dimensional Drawings
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
